Audio-Technica ( Iron Triangle ) AT875R super- directional condenser microphone

Audio-Technica ( Iron Triangle ) AT875R super- directional condenser microphone

Audio-Technica ( Iron Triangle ) AT875R super- directional condenser microphone



Product Features :



Designed for video production and broadcast interviews (ENG / EFP) audio radio design.

Very short length design (175mm), suitable for use in small digital cameras .

Provides ultra- narrow angle pointing performance , giving the effect of long-distance radio .

From the microphone to the rear sides have excellent noise immunity .

Frequency response characteristic can reduce noise and handheld cameras .

Using phantom power .

Product description :

AT875R radio performance provides high sensitivity ensures receive the largest source. In some cases , in order to avoid over load input sound break occurs , it is necessary in the join between the microphone and the preamplifier of AT8202 level attenuator.

RoHS compliant microphone in the EU directive on hazardous substances .

AT875R need to use 11V to 52V microphone phantom power .

XLRM XLR output of the microphone is low impedance balanced output microphone audio signals ultimately to the 2nd and the 3rd pin male XLR output , and Pin 1 is ground ( shield ) connection. Positive phase output phase will be located on level 2 pins.

AT8015 Specifications

Element is fixed charge back plate , electrostatic capacitance

Ultra- directional directivity

Frequency Response 90Hz ~ 20,000 Hz

Open Circuit Sensitivity -30 dB (31.6 mV) re 1V at 1 Pa

Impedance of 100 ohms

SNR 74 dB, 1 kHz at 1 Pa

Phantom power 11 ~ 52V DC phantom power

Maximum Input Sound Level 127 dB SPL , 1 kHz at 1% THD

Weight 80g

Dimensions 175.0 mm long , 21.0 mm diameter

Built-in three-pin plug XLR male XLRM

Standard AT8405a 5/8 "-27 joint shaft bracket ;

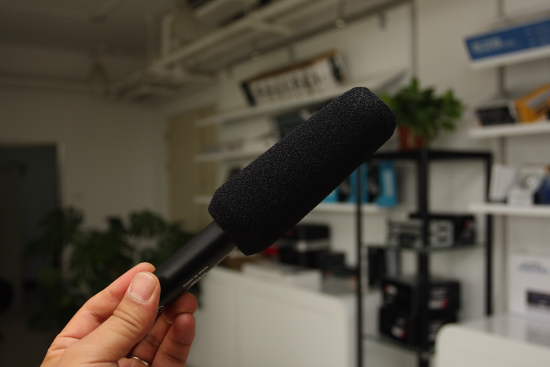

Foam windscreen ;

5/ 8 " -27 to 3/ 8" -16 threaded adapter ;

Protective bag
