FMUSER 5KW FM Radio Station

Total:39480 USD
Item:34500 USD Shipping:4980 USD

FMUSER 5KW FM Radio Station can cover 60 to 80KM radius in ideal environment .

It include: one 5KW FM transmitter, six bay dipole antenna,

one 50M coaxial cable, one mixer, two microphones,

one audio processor ,two BOP covers, two headphones, two speakers,

one four way telephone coupler , one DVD player ,

two microphone stands, two BOP covers .One On Air LED warning.

One 5KW FM Transmitter

1.   Frequency Range:  87.0MHz~108 MHz
2.   Frequency Setting step:   10KHz
3.   Carrier Frequency precision: 200Hz
4.   Residual Wave Radiation:   70dBc
5.   Analog audio Input Impedance:   600Ω, Balance
      AES/EBU digital audio input impedance: 110 Ohm, Balance
6.   Separation: >50dB,30Hz~15KHz
7.   Audio Input Level:     10dBm~+10dBm, step 0.01dB
8.   S/N:       >75dB (1kHz, 100%modulation)
9.   Audio Harmonic Distortion:     <0.1%
10. Audio response:       0.1dB(10Hz~15KHz)
11. Output Load Impedance:     50Ω
12. Output Power:         0W~5KW
13. Pre-emphasis:     0μS, 50μS, 75μS
14. Deviation:   ±75kHz
15. Pilot Frequency:    19 kHz; 0.5Hz
16. RF Output Interface:    1+5/8'
17.Size:  72mm * 1950mm *1200mm
18.Weight: 350KG

One 6bay Dipole Antenna

FEATURES
All FM bandwith
Vertical polarization
High gain
304 stainless steel material
DC grouding lightning protection

SPECIFICATIONS
1.Frequency Range: 88.0MHz～108.0MHz
2.Gain: 9.2dBd
3.Input Power:  5KW/10KW
4. Impedance: 50Ω
5.VSWR:     <1.10(specified frequency)
<1.25 (all FM band)
6.RF Intput connector: 1-5/8 for 5KW
   3-1/8 for 10KW
7.Wind Load:32kg.150km/h
8.Weight:   75KG

One 50M Coaxial Cable

*50meters 7/8" coaxial cable, AVA5-50 HELIAX Andrew Virtual Air Coaxial Cable corrugated copper 7/8 in black PE jacket

One 16-way Mixer

* New ultra-low noise VLZ3 design with highest possible headroom
* 16 studio-grade XDR2™ Extended Dynamic Range mic preamps with:
        Ultra-wide 60dB gain range
        130dB dynamic range
        +22dBu line input handling
        Extended low frequency response
        Distortion under 0.0007% (20Hz - 20kHz)
        Phantom power for studio condenser mics
* 16 high-headroom line inputs, 16 channel inserts
* Advanced DC pulse transformer RF rejection
* 60mm long-wearing logarithmic-taper faders
* 4 Aux sends, level, pan, -20dB/Solo and Overload/Mute_LEDs on each channel
* 4 stereo Aux returns, 8 Direct outs, 4 Group/Bus outputs
* 3-band Active EQ with sweepable midrange
* 18dB/oct. 75Hz Lo-Cut filter
* Control Room/Phones multi-input source matrix
* Balanced 1/4" inputs and outputs (except inserts)
* Rack-mountable design with three physical configurations via rotating I/O pod
* Sealed rotary controls to resist dust and grime
* New Multi-Voltage power supply for worldwide use
* Rugged steel chassis

4-Way Telephone Hotline Coupler

This professional hotline coupler, designed for all kinds of radio and television stations for use in live broadcasts , but also applies to conference calls, call recording , fire emergency telephone and other occasions.
Applications
Record talk radio , supports up to 5 -way calling .
Telephone conference system
Scheduling departments : aviation, electric power, railway , petroleum , ports , transportation and other command and control center

Two Monitor Headphone

Feature
FU44 Monitor headphone
* Wear mode: wearing ear
* Headphones Type: Wired
* Whether the microphone: No
* Headset service: Genius
* Frequency response 18-20000Hz
* impedance of 32 Ohms
* SPL 115 dB SPL / V
* harmonic distortion: <1%, maximum
* input power of 200mW
* leather earmuffs, automatic adjustableand comfortable headset
* lightweight form factor
* Back retractable headphones
* excellent cost performance

Two Monitor Speaker

Power Output: 80 watts RMS;
Amplifier Class: 4 x class AB;
Magnet Type: Industrial Y30 hard ferrite;
Frequency Response: 60Hz to 20kHz;
Signal-To-Noise Ratio: 87dB;
Protection: RF interference, output current limiting, over temperature;
Tweeter: 1 inch ferro fluid cooled silk domes;
Woofer: 5 inch polypropylene coated woofers;
Surrounds: Butyl rubber; Input
Connector: RCA; Output Connector: four-pin XLR;
Satellite Dimensions: 7.9 x 8.7 x 11.3 inches (each);
Weight: 28 pounds (total);
Cabinet: Vinyl-laminated high density MDF

One Audio Processor

Feature
FMUSER FU1600
* Reference-Class 2-Channel Expander/Gate/Compressor/Peak Limiter with Integrated Dynamic Enhancer, De-Esser and Low Contour Filter
* Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
* Adjustable dynamic Enhancer with level meter for brilliant, lively audio even with heavy compression
* IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
* Switchable De-esser removes excessive sibilance from your vocal tracks
* IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
* Automatically or manually adjustable attack and release times

One DVD Player

1, through the electric automatic play, with the function of remote control;
2, automatic broadcast control, digital servo;
3, support DVD, VCD, CD, MP3 and other audio formats;
4, system +ESS decoding scheme, super error correction function.

Two Microphone

Connectivity Cable
Professional Compatibility Musical Instruments, Performance, Recording
Sound Mode Mono
Type Dynamic Microphone
Usage Professional
Impedance 150 ohms
Directivity Supercardioid
Frequency Response 50 - 16000 Hz
Plug
Plug Type XLR
Max. Transmit Range 1600 ft. /487.68 m
Battery Life 8 Hours
Built In On/Off Switch With On/Off Switch
Cable Length 25 ft.
Dimensions
Weight 9.92 oz

Two Microphone Stand

Feature
* Four external springs
* Cantilever fastening knob
* Upper two tubes, the lower three tubes, increase stability
* Can be used for horizontal and vertical installation
* Hollow stent may be passing through the cable from the boom
* Chassis Mount Standard accessories

Two BOP cover

Feature
* Large double filter
* Broadcast Recording
* Microphone BOP cover

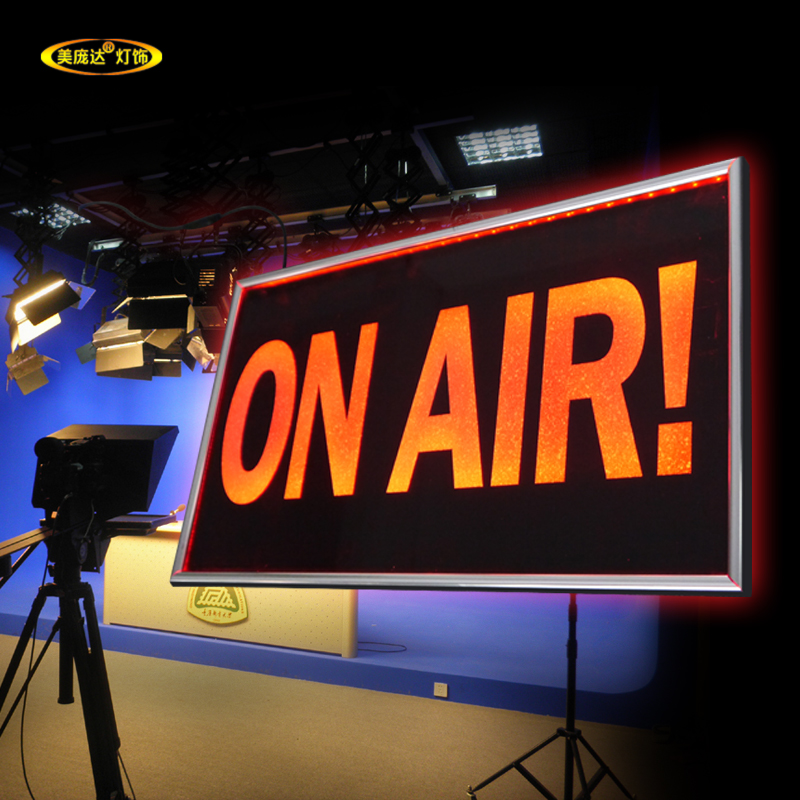

On Air LED Warning

Dimensions: outer size 48*28Cm inside size 46*26Cm
Content: AIR ON
Frame: Aluminum Alloy
Panel: glass
Background: the default black background
Lighting: the default light is red LED

Total:39480 USD
Item:34500 USD Shipping:4980 USD

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM

How to contact us for the transmitter?

Call me +8618078869184 OR
Email me [email protected]
1.How far you want to cover in diameter ?
2.How tall of you tower ?
3.Where are you from ?
And we will give you more professional advice.
