    EV RE27 professional dynamic broadcast microphone + EV 309A microphone shock mount



    EV RE27 professional dynamic broadcast microphone + EV 309A microphone shock mount


    RE series is smooth and accurate sound performance of the product of choice, it is a unique, outstanding performance makes it won the broadcasting sector, studio, touring favorite, RE20 and RE27N / D broadcast microphone from EV's Variable-D design development comes true and accurate to ensure the sound and get no noise, and achieve the best results, the microphone has become a standard in the world of work over the studio.

    Technical indicators:

    ◇ Frequency response: 45 to 20,000 Hz

    ◇ polar diagram type: cardioid

    ◇ Impedance: 150 ohm balanced

    ◇ open circuit voltage: 1000 Hz, 3.1 mV / Pa

    ◇ power level: 1000 Hz, -51 dB (0 db = 1 mW / Pascal)

    ◇ hum pickup level: -130 dB, 60 Hz, 1 mm Dios te magnetic field

    ◇ magnetic circuit: N / DYM magnet magnetic circuit without soldering

    ◇ phase: Positive pressure on the diaphragm plus 2 feet to 3 feet will produce a positive voltage relative

    ◇ Case Material: Steel

    ◇ Dimensions: Length: 216.7 mm, widest diameter: 54.4 mm, body diameter of 49.2 mm

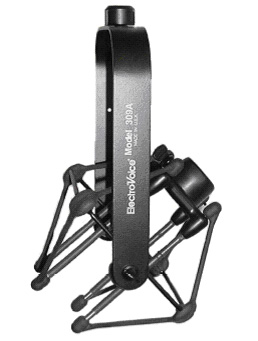

    EV 309A shock mount

    EV RE20/EV RE27 optional

    Main purpose: Broadcast

    Generating unit: Dynamic

    Frequency response: 45 to 20,000 Hz

    Polar diagram type: cardioid

    Impedance: 150 ohm balanced

    Open circuit voltage: 1000 Hz, 3.1 mV / Pa

    Power level: 1000 Hz, -51 dB (0 db = 1 mW / Pascal)

    Hum pickup level: -130 dB, 60 Hz, 1 mM Dios te magnetic field

    Magnetic circuit: N / DYM magnet magnetic circuit without soldering

    Phase: Positive pressure on the diaphragm plus 2 feet to 3 feet will produce a positive voltage relative

    Case Material: Steel

    Dimensions: Length: 216.7 mm, widest diameter: 54.4 mm, body diameter: 49.2 mm

    Decoration: Bright Nickel

    Weight: 709 grams without cable

    Weight: 1446 g

    Cable: 4.6 meters, dual shield, rubber sheath, broadcast and cable, the microphone connector ends with Switchcraft A3F

    Accessories: 81715 microphone stand adapter
